Introduction: The GYTA53 Fiber Optic Cable is a high-quality and versatile solution designed to meet the diverse needs of modern communication networks. With its wide range of fiber counts, from 4-288 cores, this cable enables efficient and reliable transmission of data, voice, and video signals. Whether you require connectivity for telecommunications, CATV networks, or enterprise applications, the GYTA53 Fiber Optic Cable delivers exceptional performance, ensuring uninterrupted communication across any distance.
Purpose: The GYTA53 Fiber Optic Cable is specifically engineered to provide seamless connectivity and robust signal transmission in various environments. Its rugged construction and advanced features make it an ideal choice for long-haul communication applications where reliability and performance are paramount.
Features: The GYTA53 Fiber Optic Cable offers a comprehensive set of features that ensure optimal performance and durability:
-
Wide Fiber Count Range: Choose from 4 - 288 cores to meet your specific network requirements, enabling efficient transmission of large volumes of data.
-
Enhanced Protection: The cable is equipped with a robust outer sheath made of high-quality materials, providing excellent protection against moisture, UV radiation, and extreme temperatures. It ensures long-term reliability, even in harsh outdoor environments.
-
Crush Resistance: The cable incorporates a high-strength central strength member and additional layers of aramid yarns, delivering exceptional crush resistance and protecting the delicate fiber strands.
-
Bend Insensitivity: Designed with bend-resistant fibers, the GYTA53 Cable can withstand tight bends without compromising signal quality. It is suitable for installation in confined spaces or areas with complex routing requirements.
-
Low Attenuation: The cable features low attenuation characteristics, minimizing signal loss and maintaining high-quality transmission over long distances.
Interface Type: Customizable as per client requirements Length: Customizable as per client requirements
Specification Table:
| Parameter | Specification |
| Fiber Type | Single-mode or Multimode |
| Fiber Count | 4 - 288core |
| Cable Structure | Central Tube |
| Outer Sheath Material | UV-Resistant PE |
| Crush Resistance | ≥1000 N/100mm |
| Tensile Strength | ≥3000 N |
| Installation Temperature | -40°C to +70°C |
| Operating Temperature | -20°C to +60°C |
| Attenuation | ≤0.4 dB/km (1310nm) |
| | ≤0.3 dB/km (1550nm) |
| Flame Rating | IEC 60332-3 |
| | LSZH (optional) |
| Compliance | ITU-T G.652D |
| | ITU-T G.655 |
Experience the power of seamless connectivity and reliable signal transmission with the GYTA53 Fiber Optic Cable. Its advanced design, sturdy construction, and exceptional performance make it the perfect choice for high-capacity communication networks. Customizable in interface type and length, this cable provides a tailored solution to meet your specific requirements. Invest in the GYTA53 Cable today and unlock the full potential of your communication infrastructure.
|
|

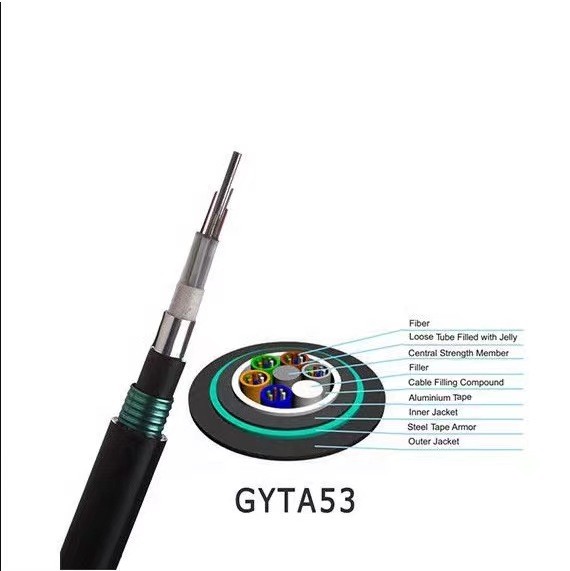

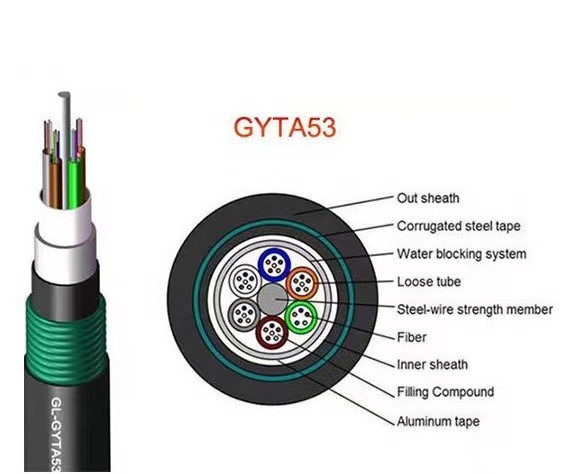

Factory direct sales of GYTA53 single-mode fiber optic cable 4-288 core outdoor armored direct buried fiber optic cable Images
|
