GYTY53 GYXTW53 Fiber Optical Cable 4 Core Direct Buried Duct Anti Mouse Biting

Brand Name : OEM/ ODM/ YUEXIANKE

Model Number : GYTY53

Certification : UL/ CE/ ETL/ ROHS/ ANATEL

Place of Origin : China

MOQ : 1000 Meters

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram

Supply Ability : 100000 Meters/Day

Delivery Time : 7~15Work Day

Packaging Details : 1000 Meters

Fiber optical core : G652D, G657A1, G657A2

Color : black/white

Product name : GYTY53 fiber optic cable

Structure : stranded fiber 22as

Jacket sheath : PVC, LSZH, PE, PU, TPU, ect.

Fibra optica : singlemode/ multimode GYTY53

Layout ways : Aerial/underground/buried/pipeline

Number of Conductor : 2,4,6,8,10,12,,24,36,48,64,96,128,144 cores

Contact Now

GYTY53 GYTXW GYXTW53 4-288 Core Direct Buried Duct Anti Mouse Biting Fiber Optical Cable

Product Description

The fibers, 250um, are positioned in a loose tube made of a high modulus plastic.
the tubes are filled with a water-resistant filling compound.
a steel wire, sometimes sheathed with polyethylene (PE)for cable with high fiber count, located in the center of core as a metallic strength member.
tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
an aluminum polyethylene laminate (APL) is applied around the core of cable.
which is filled with the filling compound to protect it from water ingress.
then the core of cable is covered with a thin PE inner sheath.
after the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

.............................................................................................
Good mechanical and temperature characteristics

Loose tube material itself has good water resistance and high strength.

The tube is filled with special ointment to protect the optical fiber.

Specially designed compact optical cable structure to effectively prevent casing retraction.

PE sheath has good UV radiation resistance

The following measures are taken to ensure the waterproofing performance of the cable:

Core reinforcing core of single steel wire

Special waterproof compound filled in loose casing

Full core filling

- coated aluminum strip (APL) moistureproof layer



The GYTY53 optical cable compliance with the YD/T901-2009 and IEC60794-1 standards.


Product Parameters

Model fiber cores OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm
GYTY53 6-288 7-20mm 70-300 3500/7000N 300/1000 15D/30D

Cores no. 2-42 44-72 74-84 86-96 98-108 110-120 122-132 134-144
OD Outer diameter(mm) 10.4 11.2 12.2 14.0 14.8 15.8 16.6 17.4
Cable weigh(kg/km) 90 100 115 180 195 220 240 265

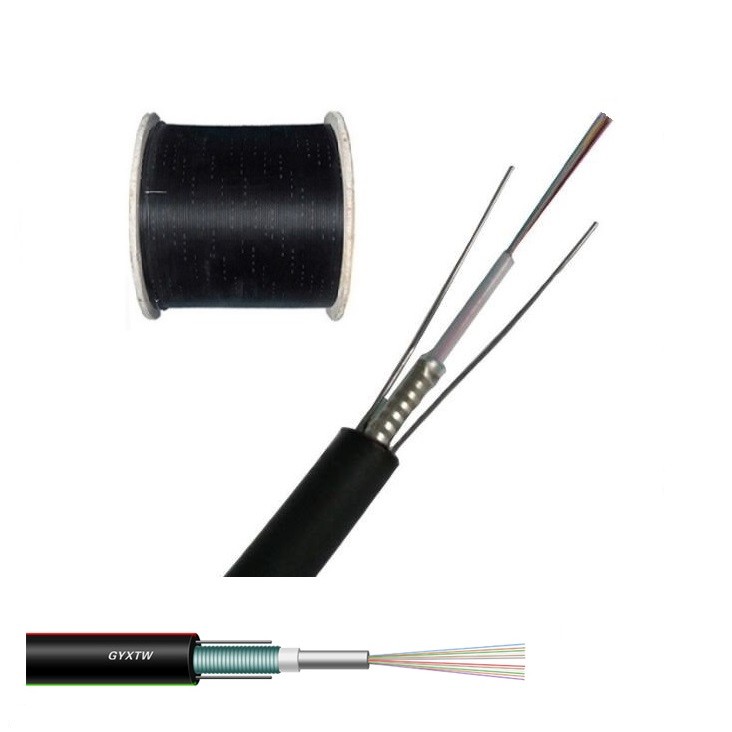

GYTY53 GYXTW53 Fiber Optical Cable 4 Core Direct Buried Duct Anti Mouse Biting

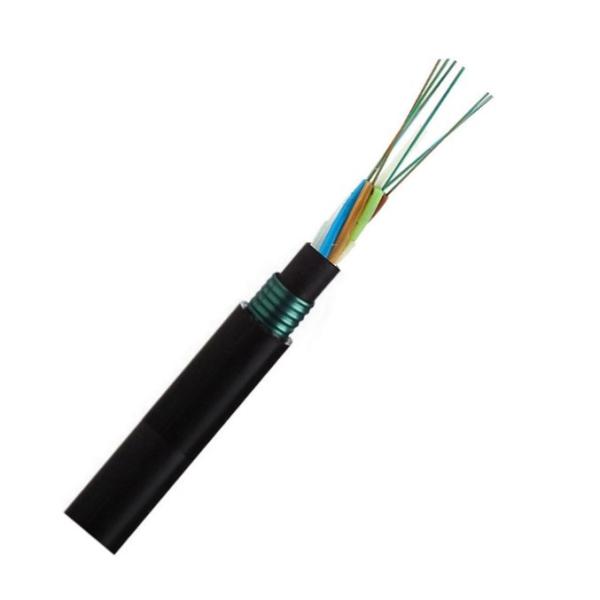

GYTY53 GYXTW53 Fiber Optical Cable 4 Core Direct Buried Duct Anti Mouse BitingGYTY53 GYXTW53 Fiber Optical Cable 4 Core Direct Buried Duct Anti Mouse Biting

Packing & Shipping

Cable Type Drum Length (KM) Drum/Carton size (cm) Gross weight/CTN (kgs) KMs/20ft
GYXTW 2~12F 2 70*70*60 160 144

FAQ

Q1: Are you a trading company or manufacturer ?
We are a professional manufacturer that producing communication cable, such as UTP/FTP/SFTP cat5,cat5e,cat6,cat7, patch cord,coaxial cable,power cable,etc. When you have trip in China, feel free to contact us to pick you up in the airport and welcome to visit our factory.

Q2: Why choose us?What is your advantage?
Our factory established in 2011, located in Baiyun district Dongguan City. Produce various cables for more than 9 years experience.You can get quality-assured products and a excellent buying experience from us!

Quality products: High quality raw material
Competitive price: Factory price
OEM service: Offer and welcome OEM service
Thoughtful service : Fast response within 24hours
Quick delivery time: Strict production plan and delivery date.

Q3: Will you accept samples order?
Yes, You are welcome to place sample order to test our superior quality and services.

Q4:Time delivery?
1*20'GP: Within 10 days after receive deposit.
1*40'GP: Within 12 days after receive deposit.
1*40'HQ: Within 15 days after receive deposit.
For Stock items,only 2 days for delivery time.

Q5: Payment term?
T/T, , Money Gram, Paypal, etc.
