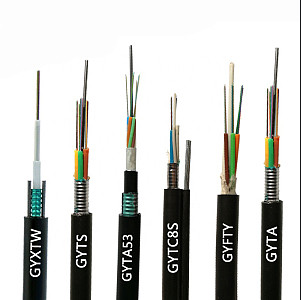

GYTXW/GYTC8S/GJFJV/GJXH/GJXFH/4/6/8/12/24/48/72/96/128/288 core fibar optica cable

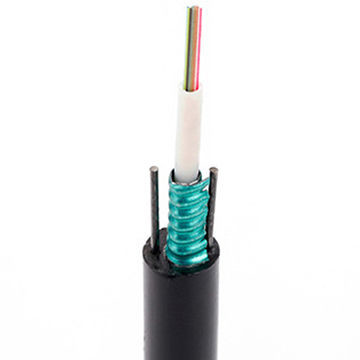

Single mode or multimode fibres are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.
Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.the cable core is filled with filling compound to protect it from water ingress,over which a thin PE inner sheath is applied.After the PSP is longitudinally applied overthe inner sheath, the cable is completed with a PE sheath.
Performance of Cabled Optical Fiber
The performance of cabled optical fiber (ITU-T Rec. G.652D)
| Item | Specification | |
| Fiber type | Single mode | |
| Fiber material | Doped silica | |
| Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm |
≤ 0.36 dB/km
≤0.35 dB/km
≤0.22 dB/km
≤0.25 dB/km
| |
| Point discontinuity | ≤ 0.05 dB | |
| Cable cut-off wavelength | ≤ 1260 nm | |
| Zero-dispersion wavelength | 1300 ~ 1324 nm | |
| Zero-dispersion slope | ≤0.092 ps/(nm².km) | |
| Chromatic dispersion
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm |
≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km)
| |
| PMD | ≤0.2 ps/km½ | |
| Mode field diameter @ 1310 nm | (8.6~9.5)±0.6 um | |
| Core / Clad concentricity error | ≤0.6 um | |
| Cladding diameter | 125.0 ± 1 um | |
| Cladding non-circularity | ≤1.0% | |
| Primary coating diameter | 245 ± 10 um | |
| Proof test level | 100 kpsi (=0.69 Gpa), 1% | |
| Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm | ≤ 0.1 dB/km | |
Cable bending radius: 10 x cable diameter (static)
20 x cable diameter (dynamic)
Packing & Shipping
| Cable Type | Drum Length (KM) | Drum/Carton size (cm) | Gross weight/CTN (kgs) | KMs/20ft |
| GYXTW 2~12F | 2 | 70*70*60 | 160 | 144 |
FAQ
Q1: Are you a trading company or manufacturer ?
We are a professional manufacturer that producing communication cable, such as UTP/FTP/SFTP cat5,cat5e,cat6,cat7, patch cord,coaxial cable,power cable,etc. When you have trip in China, feel free to contact us to pick you up in the airport and welcome to visit our factory.
Q2: Why choose us?What is your advantage?
Our factory established in 2011, located in Baiyun district Dongguan City. Produce various cables for more than 9 years experience.You can get quality-assured products and a excellent buying experience from us!
Quality products: High quality raw material
Competitive price: Factory price
OEM service: Offer and welcome OEM service
Thoughtful service : Fast response within 24hours
Quick delivery time: Strict production plan and delivery date.
Q3: Will you accept samples order?
Yes, You are welcome to place sample order to test our superior quality and services.
Q4:Time delivery?
1*20'GP: Within 10 days after receive deposit.
1*40'GP: Within 12 days after receive deposit.
1*40'HQ: Within 15 days after receive deposit.
For Stock items,only 2 days for delivery time.
Q5: Payment term?
T/T, , Money Gram, Paypal, etc.
